Maximum positioning speed :
| Maximum processing range | 5' x 10' / 1530 mm x 3050 mm |
| X / Y / Z axis positioning accuracy | +/- 0.0015" / +/-0.03 mm |
| X / Y / Z axis repeat positioning accuracy | +/- 0.001" / +/- 0.02 mm |
| X / Y / Z axis maximum cutting speed | 3150 ipm / 80 m/min |
| X / Y / Z maximum acceleration | 1.2 G |
| Working platform load | 2050 lbs / 930 kg |
| Maximum material load | 45 lbs/sq ft / 220 kg/sq meter |
| Working voltage | 380 vac |
| Dimension | 15’5’’ x 10’11’’ x 8’ / 4700 mm x 3340 mm x 2450 mm |
| Total weight | 9000 lbs / 4080 kg |
1.5 kW to 6 kW Power Options
Included with the machine
Available Options
DESCRIPTION

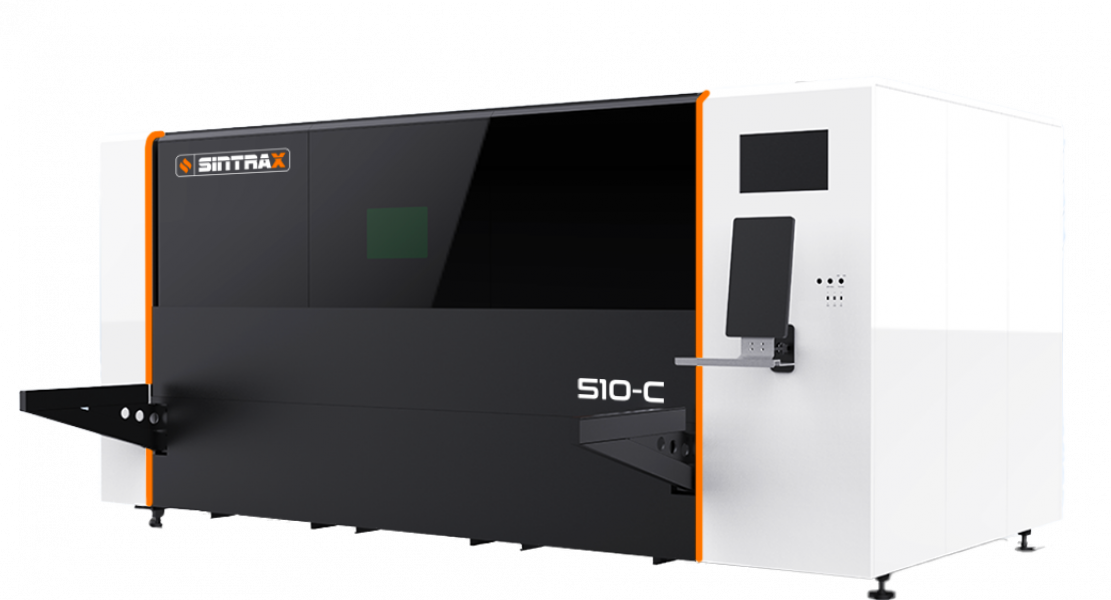

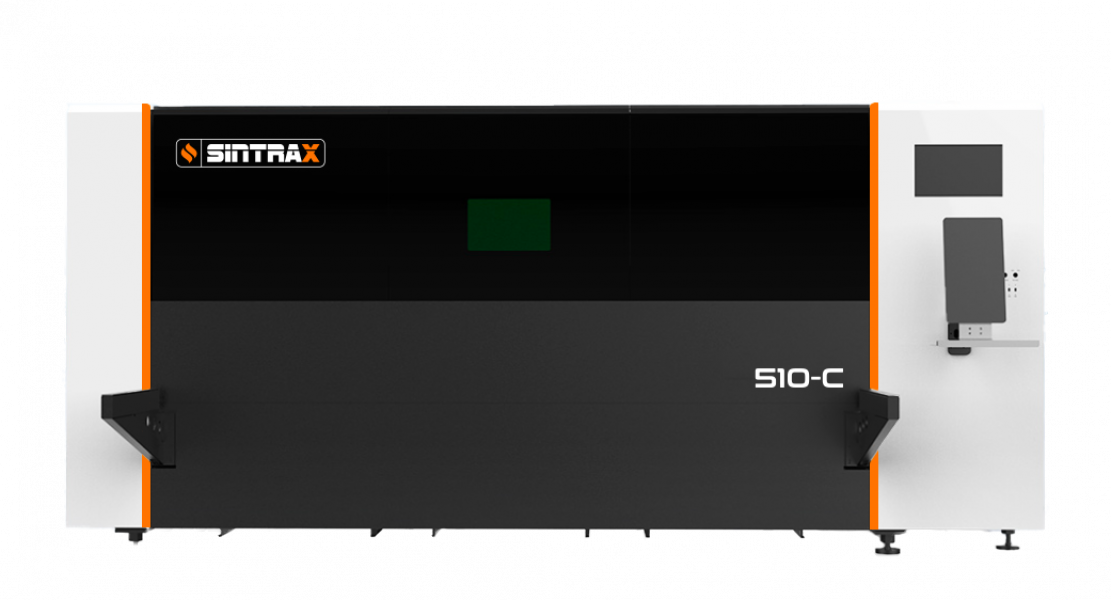

The SINTRAX 510-C redefines performance in compact fiber laser cutting. Built on a robust frame and compliant with Canadian safety standards, it delivers fast, precise results across thin and thick materials.
Its pull-out cutting platform simplifies material loading, while the fully enclosed design ensures operator safety and a clean work environment.
Thanks to segmented fume extraction, airflow is optimized through synchronized push-and-pull ventilation, improving visibility and air quality during operation.
Efficient, reliable, and ready for continuous production, the SINTRAX 510-C sets the standard.
