Maximum positioning speed :
| Maximum processing range | 5' x 10' / 1530 mm x 3050 mm |
| Laser power | 1.5 kW to 60 kW |
| X / Y axis positioning accuracy | +/- 0.0015" / +/-0.03 mm |
| X / Y axis repeat positioning accuracy | +/- 0.001" / +/- 0.02 mm |
| X / Y axis maximum cutting speed | 4725 ipm / 120 m/min |
| X / Y maximum acceleration | 1.5 G |
| Working platform load | 2050 lbs / 930 kg |
| Maximum material load | 45 lbs/sq ft / 220 kg/sq meter |
| Working voltage | 380 vac |
| Dimension | 9'6" x 27'3" x 7'3" / 2880 mm x 8310 mm x 2200 mm |
| Total weight | 14000 lbs / 6350 kg |
1.5 kW to 60 kW Power Options
Included with the machine
Available Options
DESCRIPTION

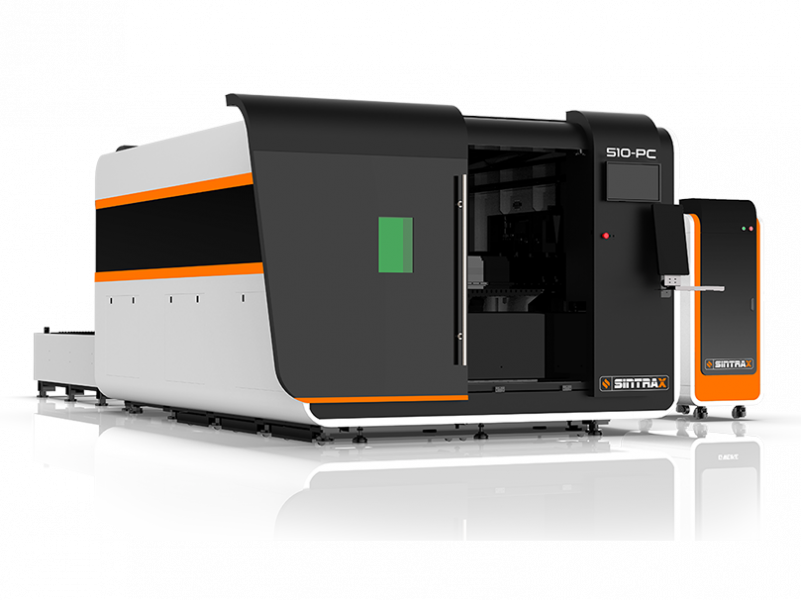

The SINTRAX 510-PC Pallet Changer offers high-end precision and industrial reliability. Designed and engineered to meet Canadian electrical and safety regulations, this machine integrates powerful Yaskawa servo motors, IPG Photonics or MAX Photonics laser source, and industry-leading control systems.
Backed by a 2-year warranty and Spark & Co.’s lifelong technical support, it's the smart investment for manufacturers looking to optimize productivity.
