SINTRAX PCT Series
Menu
Maximum positioning speed :
| Maximum processing range | 4’3” x 4’3” / 1300 mm x 1300 mm |
| X / Y / Z axis positioning accuracy | +/- 0.0015" / +/-0.03 mm |
| X / Y / Z axis repeat positioning accuracy | +/- 0.001" / +/- 0.02 mm |
| X / Y / Z axis maximum cutting speed | 1575 ipm / 40 m/min |
| X / Y / Z maximum acceleration | 0.5 G |
| Working platform load | 660 lbs / 300 kg |
| Maximum material load | 45 lbs/sq ft / 220 kg/sq meter |
| Working voltage | 380 vac |
| Dimension | 8’3’’ x 8’6’’ x 6’2” / 2525 mm x 2600 mm x 1880 mm |
| Total weight | 4500 lbs / 2040 kg |
1 kW to 6 kW Power Options
Included with the machine
Available Options
DESCRIPTION

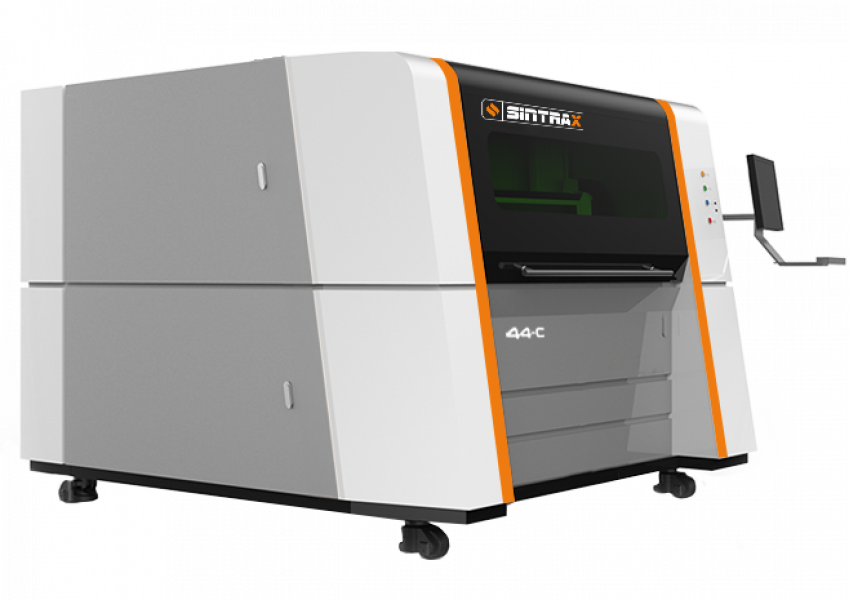

The SINTRAX 44-C redefines laser cutting standards in a compact format.
Designed for machining high-precision mechanical parts and the microelectronics industry, it ensures flawless cutting quality, even on the thinnest materials.
Equipped with reliable components and precise mechanics, it delivers clean and consistent cuts while taking up minimal floor space. The SINTRAX 44-C is the ideal solution for companies seeking a high-performance, durable machine that is easy to integrate into production.
