Laser cutting and welding generate ultra-fine metallic dust particles—microscopic yet harmful to your equipment and operators. These particles (< 0.38 µm) infiltrate every surface, clog electronics, and pollute the workspace.

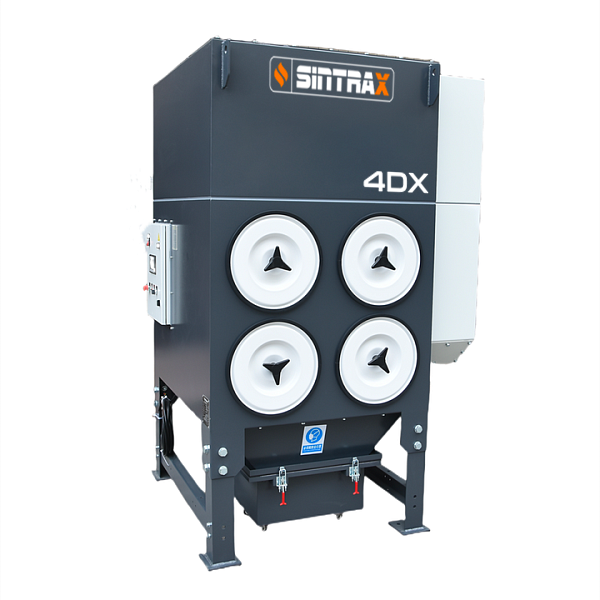

The SINTRAX Dry Dust Collectors integrate a cutting-edge filtration system designed to eliminate these microparticles directly at the source. With high-efficiency TORAY filter cartridges (99.999% retention), robust construction, and simplified maintenance, the system ensures clean air, protected machinery, and a work environment that meets the highest safety standards.
In addition to our dry dust collectors, we offer a Wet Dust Extractor, a safe and efficient solution for capturing fine and combustible particles through water filtration. This technology delivers high efficiency, reduces the risk of fire or explosion, limits static electricity, and operates quietly thanks to water acting as both a filter and noise dampener. Dust trapped in the water is easy to remove, without frequent replacement of costly filters.
 |  |  |  |  |
|
|---|---|---|---|---|---|
| LightWELD 2000XR Welding & Cleaning | LightWELD 1500XR Extended Range Welding & Cleaning | LightWELD 1500XC Welding & Cleaning | LightWELD 1500 Welding | LightWELD 1000 Welding |
|
| Welding Capability: Steels | Stainless, Galvanized & Mild Steel: up to 8 mm (0.315” ) | Staineless Steel, Mild Steel, Galvanized Steel 6.35 mm (0.250'') | Staineless Steel, Mild Steel, Galvanized Steel 4 mm (0.160'') | Staineless Steel, Mild Steel, Galvanized Steel 4 mm (0.160'') | Staineless Steel, Mild Steel, Galvanized Steel 4 mm (0.160'') |
| Welding Capability: Aluminium | Aluminum 3 & 5 Series: up to 8 mm (0.315”) Aluminum 6 Series: up to 5 mm (0.200”) | Aluminium (3XXX, 5XXX, 6XXXseries) 6.35 mm (0.250'') | Aluminium (3XXX, 5XXX series) 4 mm (0.160'') | Aluminium (3XXX, 5XXX series) 4 mm (0.160'') | Aluminium (3XXX, 5XXX series) 4 mm (0.160'') |
| Welding Capability: Titanium and Nickel Alloys | Titanium & Nickel Alloys: up to 7 mm (0.275” ) | Titanium and Nickel Alloys 6.35 mm (0.250'') | - | - | - |
| Welding Capability-Cooper | Copper: up to 3 mm (0.120”) | Copper 2 mm (0.080'') | - | - | - |
| Wooble Welding | Up to 5 mm width | Up to 5 mm width | Up to 5 mm width | Up to 5 mm width | Up to 5 mm width |
| Cleaning Capability | Pre- & Post-weld up to 15 mm width | Pre- & Post-weld up to 15 mm | Pre- & Post-weld up to 15 mm | - | - |
| High Frequency Peak Power for Cleaning | 3000 W | 2500 W | 2500 W | - | - |
| Wire Welding Capability | Yes | Yes | Yes | Yes | Yes |
 |  |  |  |  |
|
|---|---|---|---|---|---|
| OPTIMAX | OMAX | MAXIEM | GLOBALMAX | PROTOMAX | |
| Description du Produit | La machine à jet d'eau complète utilisant le meilleur de ce que OMAX a à offrir. | Le cheval de bataille des jets d'eau, la ligne OMAX offre précision, performance et puissance. | Capacité maximale avec la plus large compatibilité d'accessoires | Configuré pour votre entreprise avec une large compatibilité d'accessoires | Jet d'eau abrasif économique avec compatibilité essentielle d'accessoires |
| 3-Axes | Z Programmable | Z Programmable | Z Programmable | Z Programmable | Z Manuel |
| 5-Axes | VersaJET, TiltaJET | A-Jet, TiltaJET | A-Jet | ||
| 6-Axes | Bientôt disponible | Rotary Axis with A-Jet/TiltaJET | |||
| Buse de Coupe | MAXJet 5i | MAXJet 5i | MAXJet 5i | GlobalMAX Nozzle | ProtoMAX Nozzle |
| Dimensions de la Surface de Coupe | 10'0" x 5'2" to 13'4 x 6'8" 3.04 m x 1.57 m to 4.06 m x 2.03 m | 2'5" x 2'2" to 46'8" x 13'4" 0.73 m x 0.66 m to 14.2 m x 4.0 m | 5’2” x 5’2” to 20'6" x 10'2" 0.79 m x 0.77 m to 6.2 m x 3.1 m | 2'7" x 5'0" to 13'3" x 6'8" 0.80 m x 1.5 m to 4.0 m x 2.0 m | 12" x 12" 0.3 m x 0.3 m |
| Capacité de Poids sur la Surface de Coupe | 400 lbs/sq ft 1950 kg/m2 | 400 lbs/sq ft 1950 kg/m2 | 300 lbs/sq ft 1465 kg/m2 | 100 lbs/sq ft 488 kg/m2 | 50 lbs/ sq ft 244 kg/m2 |
| Circularité Ballbar | ±0.003" ±0.076 mm | ±0.0025" to ±0.005" ±0.064 mm | ±0.005" ±0.127 mm | ±0.007" ±0.178 mm | ±0.016" ±0.406 mm |
