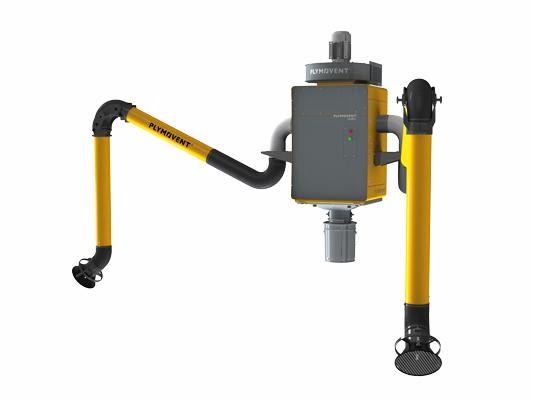

Stationary welding fume filter including two extraction arms and fan. The highly efficient filter cartridge is automatically cleaned by means of the RamAir ™ pulse amplifier.
Filter surface: 20 m² (215 ft²) Welding fume class: W3 Fan: 2.2 kW (3 HP) / 3x400V Net extraction capacity: max. 1450 m³ / h (853 CFM) per arm Type of extraction arms: KUA-200 length 3 m (10 ft.)
The extraction arm is mounted directly on the filter unit (DM = direct mount). Incl. control box and reducer from rectangular to round Ø 250 mm (10 in.) for mounting on the fan outlet.
