WallPro Double-160/4-DM 636

part reference number: PLY-117379
WallPro Double-160/4-DM 636

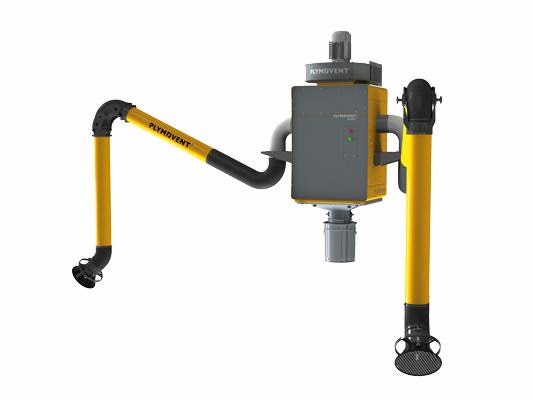

Stationary welding fume filter including two extraction arms and fan. The highly efficient filter cartridge is automatically cleaned by means of the RamAir ™ pulse amplifier.
Filter surface: 20 m² (215 ft²) Welding fume class: W3 Fan: 2.2 kW (3 HP) / 3x400V Net extraction capacity: max. 1000 m³ / h (589 CFM) per arm Type of extraction arms: KUA-160 length 4 m (13 ft.)
The extraction arm is mounted directly on the filter unit (DM = direct mount). Incl. control box and reducer from rectangular to round Ø 250 mm (10 in.) for mounting on the fan outlet.
